Why Welding Penetration Is Insufficient: Causes, Solutions & Pro Tips for SMAW, MIG, and TIG

Poor welding penetration—when the weld fails to fully fuse with the base metal—isn’t just a quality issue. It weakens joints, increases rework costs, and poses safety risks in critical applications like construction, manufacturing, or infrastructure. Whether you’re using SMAW (Stick Welding), MIG, or TIG, penetration problems stem from predictable factors that are easy to fix with targeted adjustments. In this guide, we break down the root causes, actionable solutions, and real-world tips to ensure deep, consistent fusion every time.

CORE CAUSES OF INSUFFICIENT WELDING PENETRATION

Penetration failure typically links to four key areas: parameter mismatches, joint preparation, material issues, or operator technique. Let’s break them down by welding process for clarity:

Incorrect Welding Parameters (Most Common Culprit)

Welding parameters (current, voltage, travel speed) directly control heat input—too little heat means shallow penetration.

SMAW: Using a low amperage for thick base metal (e.g., 60A on 10mm steel) or a fast travel speed won’t generate enough heat to melt through the surface. Conversely, excessive voltage can create a wide, shallow weld pool.

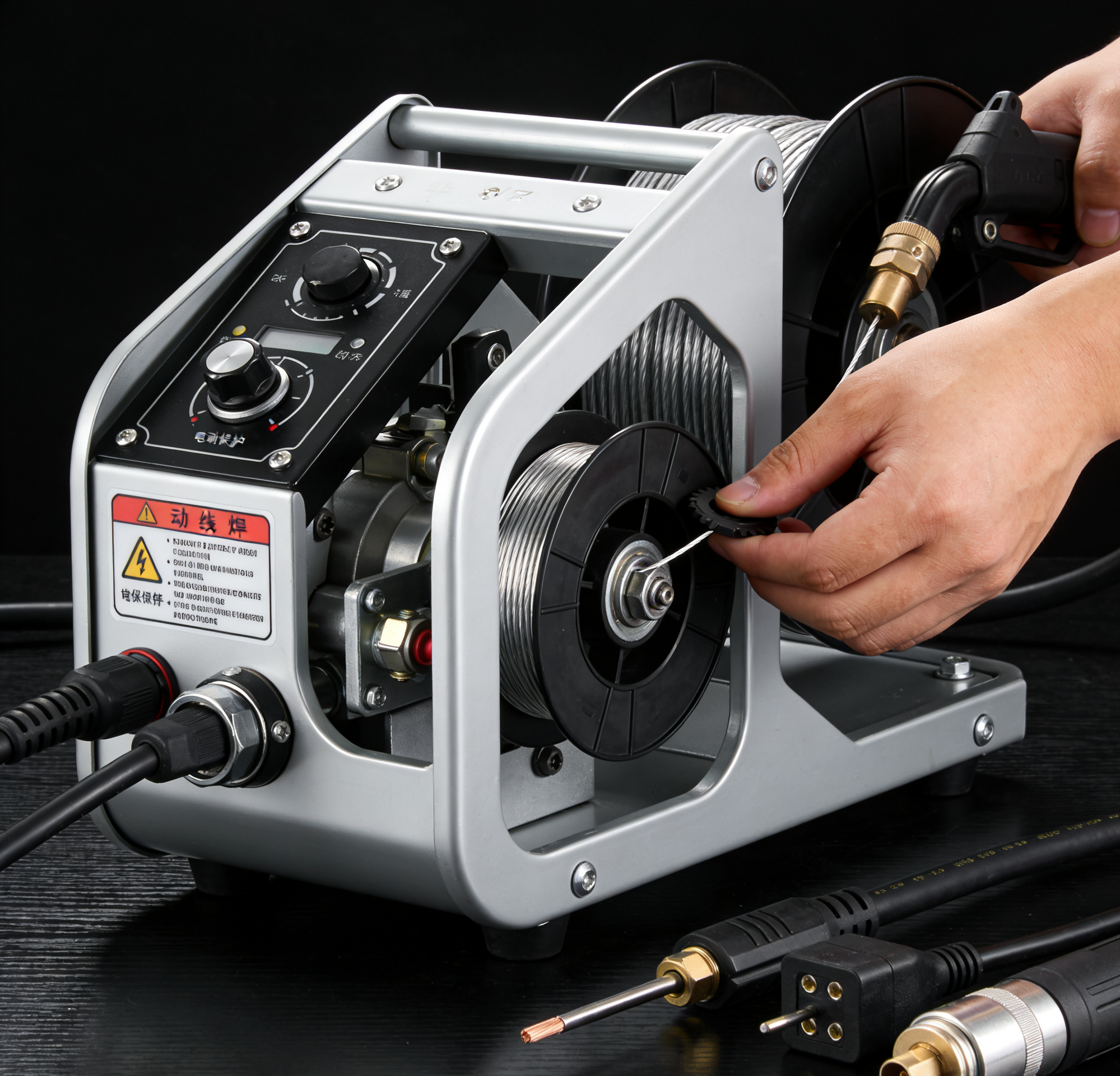

MIG: Low wire feed speed (WFS) reduces current and heat, while high travel speed skips proper fusion. A voltage setting that’s too low may cause the wire to “short out” before penetrating.
TIG: Insufficient amperage or a fast travel speed limits heat transfer. Even small deviations (e.g., 10A below the recommended range for 8mm aluminum) can compromise penetration.

Poor Joint Design & Fit-Up

Even with perfect parameters, a poorly prepared joint will fail to penetrate:

Tight or No Root Gap: A gap of 2-3mm is critical for SMAW and MIG to reach the joint root. No gap means heat bounces off the surface instead of melting through.
Inadequate Groove Angle: A V-groove angle less than 60° (for thick metal) restricts access to the joint root, leading to partial fusion.
Misalignment: Warped or poorly clamped base metal creates uneven gaps, resulting in inconsistent penetration across the weld.

Contaminated Base Metal or Filler Material

Dirt, rust, oil, paint, or galvanization on the base metal acts as a barrier to heat and fusion:

For example, welding over galvanized steel without removing the zinc coating creates a vapor layer that blocks penetration and produces toxic fumes.
Using AWS-noncompliant filler metal (e.g., a low-carbon electrode on high-strength steel) can also reduce fusion quality.

Operator Technique Mistakes

Human error plays a big role, especially with manual processes like SMAW and TIG:

Excessive Arc Length: A long arc (over 4mm for SMAW) dissipates heat, while a too-short arc can cause spatter and poor penetration.
Wrong Electrode/Nozzle Angle: Holding the SMAW electrode at a 45° angle (instead of 15-20° for drag travel) or the MIG nozzle too far from the joint reduces heat concentration.
Inconsistent Travel Speed: Rushing through the weld or pausing too long creates uneven heat input—both lead to shallow penetration.

ACTIONABLE SOLUTIONS FOR BETTER PENETRATION

Addressing penetration issues starts with targeted adjustments to parameters, preparation, and technique. Here’s what to do:

Optimize Parameters for Your Process

SMAW: Match amperage to base metal thickness (e.g., 80-100A for 6mm steel, 120-140A for 12mm steel). Use a drag travel technique with a 15-20° electrode angle and keep arc length at 2-3mm.
MIG: Increase WFS (and corresponding current) for thicker metal—e.g., 400-500 ipm (inches per minute) for 10mm steel. Adjust voltage to maintain a smooth arc (typically 22-26V for mild steel).
TIG: Slow travel speed (3-5 inches per minute) and increase amperage by 10-15% if penetration is shallow. Use a filler metal that matches the base metal’s composition (e.g., ER4043 for aluminum).

Improve Joint Preparation & Fit-Up

Grind or wire-brush the base metal to remove rust, oil, or paint—focus on the joint area and 25mm around it.
Cut grooves to AWS standards: V-groove for 6mm+ metal (60-70° angle), U-groove for thick sections (reduces filler metal use while maintaining penetration).
Ensure a root gap of 2-3mm and clamp parts tightly to prevent movement during welding.

Choose the Right Materials & Cleanliness

Use only AWS-spec filler metals (e.g., E6013 for SMAW mild steel, ER70S-6 for MIG) that match the base metal.
For galvanized or coated metals, grind off the coating before welding or use a “skip welding” technique to reduce vapor buildup.

Refine Operator Technique

SMAW: Practice a steady drag motion—avoid weaving too wide (keep weave width 2-3x the electrode diameter).
MIG: Hold the nozzle at a 10-15° angle and keep it 12-15mm from the joint (distance affects heat concentration).
TIG: Use a foot pedal to adjust amperage dynamically—increase heat when welding the root, decrease for the fill pass.

PRO TIPS & FINAL PRECAUTION

Quick Checks for Penetration

Visual Inspection: A properly penetrated weld has a uniform bead with slight reinforcement (1-2mm) and no undercut. If the bead looks “flat” or “cold,” penetration is likely shallow.
Non-Destructive Testing (NDT): For critical joints, use ultrasonic testing (UT) or radiography (RT) to verify fusion depth.

Always test parameters on scrap metal before welding the actual joint. This helps avoid costly mistakes and ensures consistency.

CONCLUSION

Insufficient welding penetration is a preventable issue—rooted in parameter mismatches, poor preparation, or technique errors. By aligning your process (SMAW/MIG/TIG) with base metal thickness, optimizing joint design, and refining your technique, you’ll achieve deep, reliable fusion every time. Remember: Quality welding starts with attention to detail—don’t rush preparation or cut corners on parameters.
