Description：

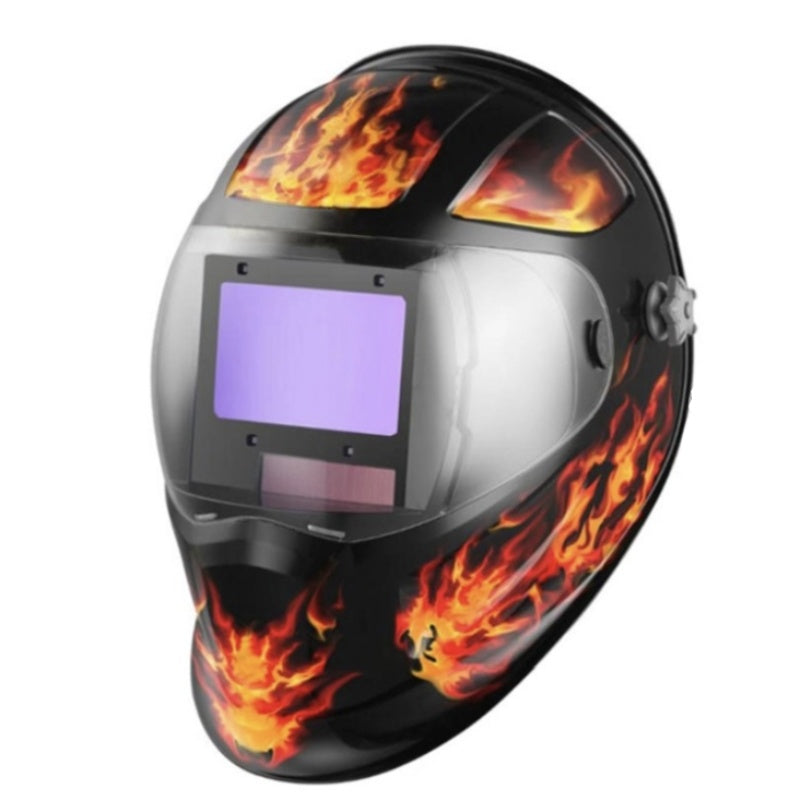

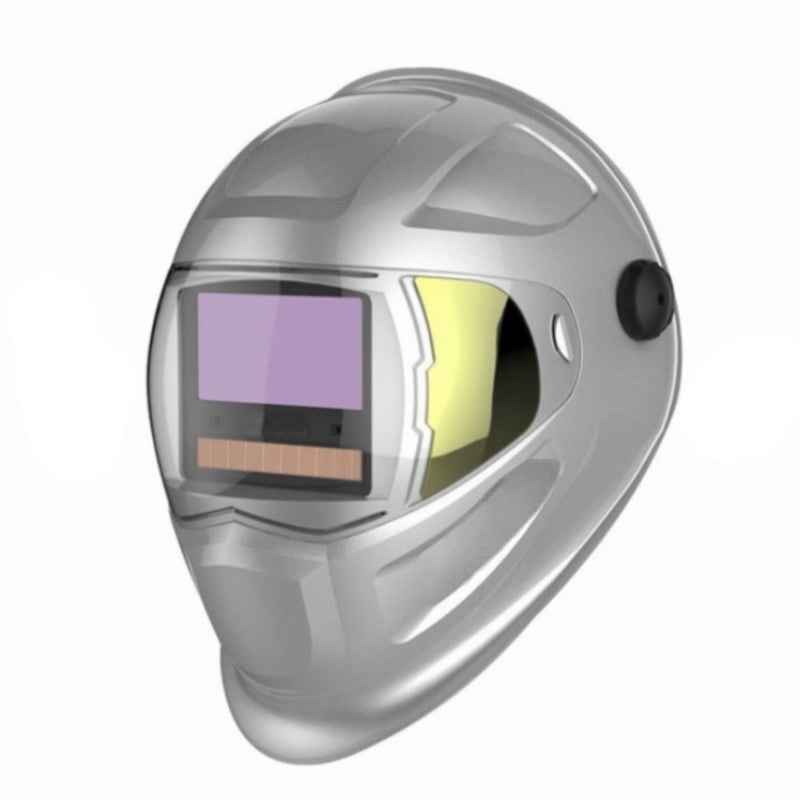

This welding and grinding dual-purpose intelligent protective helmet is an ideal partner for welding and grinding operations, integrating precise detection, flexible adjustment, and convenient operation. It is made of lightweight and high impact resistant nylon material with an adjustable headband, providing a long-lasting and comfortable wearing experience. Switching homework without removing gloves greatly improves work efficiency and safety, meeting the multiple needs of professional workers.

Features：

Dual arc intelligent detection: Equipped with two independent arc sensors, it can accurately focus and capture welding arcs, effectively shield environmental interference, ensure rapid and reliable protection response during welding, and guarantee eye and facial safety.

Multi parameter infinite adjustment: With a clear interface knob design, it is easy to achieve stepless adjustment of 9-13 levels of shading gears, 0.1-1.0 second delay time, and high and low sensitivity, adapting to different welding scenarios and personal operating habits, and improving job accuracy.

One click switch for welding and grinding: No need to take off gloves, simply rotate the external knob to quickly switch from welding mode to grinding mode, saving the tedious steps of removing and wearing helmets, reducing work interruption time, and significantly improving work efficiency.

Technical Specifications:

TECHNICAL DATA : ADF GX-900V(TRUE COLOR )

Viewing Area : 98 X 62 mm

Cartridge Size : 115 X 115X 10 mm

Arc Sensor : 4

Light State : DIN 4

Dark State : 5-8/9-13

Shade Control : select by touch switch

Power On/Off : Manual on /Automatic/Manual off

Sensitivity Control : adjustable by touch switch

UV/IR Protection : DIN16

Power Supply : Solar cell.1 of CR2450 Battery can be changed

Switching Time : 1/25000S, from light to dark

Dark to Light : 0.2-1.0S by touch knob

Low Amperage TIG Rated : ≥5amps(DC/AC)

Grinding Function :YES

Low Volume Alarm : YES

ADF self-check  : NO

Operating Tep : -5℃ to + 55℃

Storing Tep :  -20℃ to + 70℃
