Description：

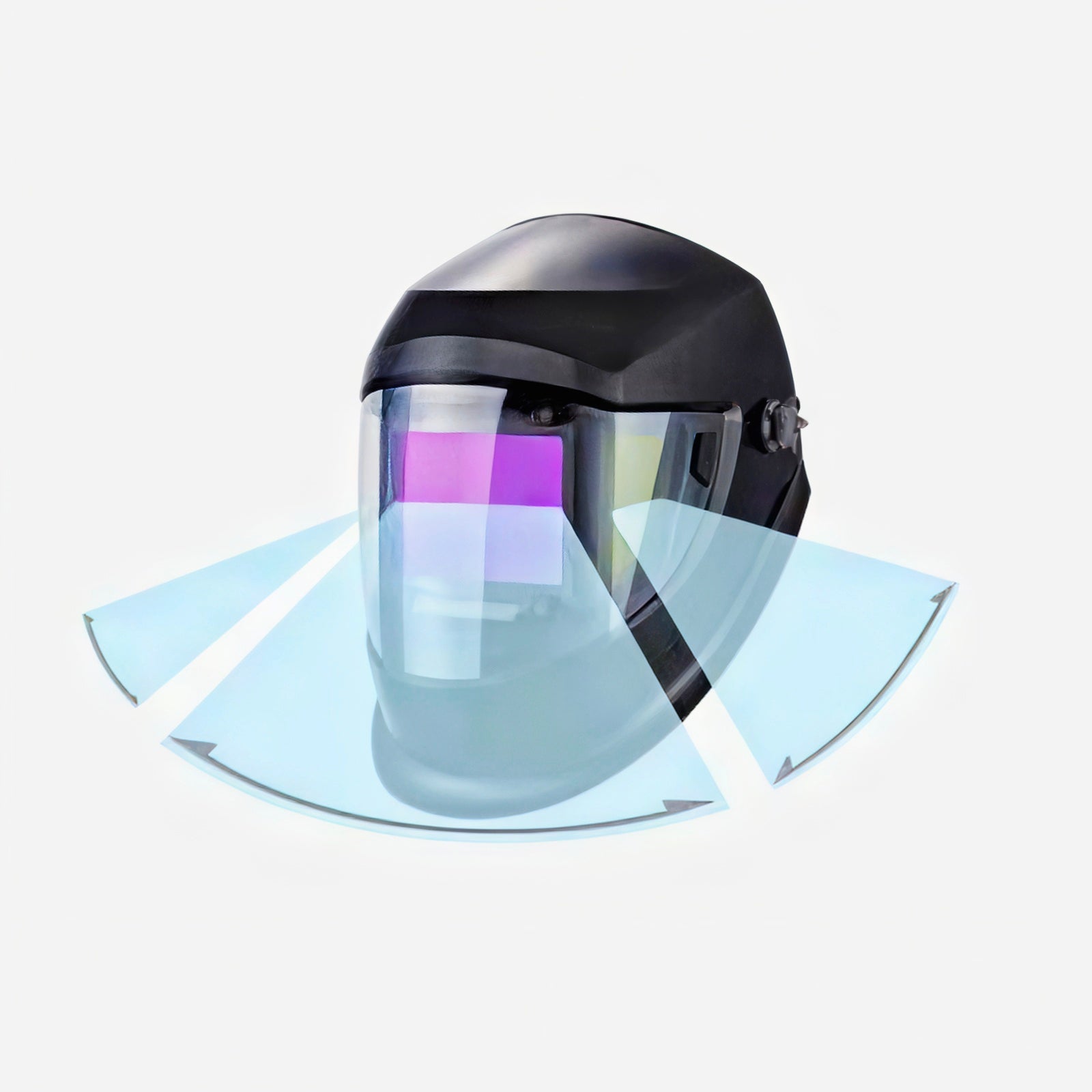

This welding helmet is engineered for arc welding operations. Its auto darkening filter rapidly switches shades, blocking intense arc light, UV, and IR radiation. The large viewing area with high - definition optics ensures clear weld pool visibility. A durable shell resists spatter, and adjustable headgear offers ergonomic comfort during prolonged welding tasks.

Features：

Highly Effective Arc Sensors : Two arc sensors are integrated into the product, each capable of independent operation and effortless detection of welding arcs. These sensors lock onto welding arcs precisely, unaffected by ambient interference.

Comfortable, Lightweight Welding Helmet : Adjustable headgear ensures the operator’s comfort. Made from high-impact-resistant nylon, it is lightweight while maintaining exceptional strength.

Infinitely Adjustable Shade 5-8/9-13, Sensitivity & Delay : A knob design with a clear interface allows easy parameter adjustment, enabling shade settings at any value from 9-13, delay from 0.1 to 1.0 seconds, and sensitivity from low to high.

Technical Specifications:

TECHNICAL DATA : F-200

Optical Class : 1/1/1/2

Viewing Area : 110 X 80 mm

Cartridge Size : 186 X 192 X105 mm

Arc Sensor : 4

Light State : DIN 4 (front window) , DIN3 (side window)

Dark State : Internal, Double range shade, Weld(9-13)and cut(5-8)(front window).

DIN 10(side window)

Sensitivity Control : adjustable by torch switch

Switching Time : 1/30000S, from light to dark

Delay Control : 0.1-1.0S select by torch switch

Power Supply : 2'solar cell and replaceable 2'CR2450 lithium batteries

TIG Amp Rating : DC≥5 ,AC≥5

Operating Temperature : -5℃ to +55℃

Storing Temperature : ﹣20℃ to +70℃

Other functions : ADE self check and Low Voltage Indicator

Grinding Function : YES

Low Volume Alarm : YES

ADF self-check : YES
