SMAW Welding Positions: Pro Techniques for Flat, Horizontal, Vertical & Overhead Welding

Shielded Metal Arc Welding (SMAW) is a workhorse in construction, manufacturing, and repair—thanks to its portability and versatility across materials like carbon steel, stainless steel, and cast iron. But mastering SMAW isn't just about striking an arc; it's about adapting your technique to the welding position—the angle of the joint relative to gravity. Whether you're working on a flat steel plate or overhead on a structural beam, the right approach ensures strong, clean welds that meet industry standards.

Below, we break down the four core SMAW positions (flat, horizontal, vertical, overhead) with pro tips, equipment tweaks, and common mistakes to avoid—tailored for fabricators, contractors, and DIY enthusiasts looking to elevate their craft.

FLAT WELDING (1G/1F): THE FOUNDATION OF SMAW

Flat welding (also called "downhand welding") is the most common and easiest position, where the weld joint lies horizontally, and gravity pulls the molten metal downward into the joint. It's ideal for base plates, flanges, and simple butt joints.

Key Techniques

• Electrode Angle: Hold the electrode at a 10–15° angle from the vertical, tilted slightly toward the direction of travel (push or drag—drag is more common for SMAW, as it creates a wider bead with better penetration).
• Travel Speed: Maintain a steady pace—too slow causes excessive buildup (undercut risk), too fast leads to shallow penetration.
• Current Setting: Use a moderate current (60–120 amps for 3/32–1/8" electrodes) to keep the weld pool manageable without splatter.

Pro Tip

For butt joints, use a slight weaving motion (side-to-side) to fill the gap evenly. For fillet welds, aim the electrode at the "toe" of the joint (where the two pieces meet) to ensure fusion on both sides.

Common Mistake

Overheating the joint—this leads to a convex bead with poor fusion. Keep the arc length short (1/8–3/16") to control heat input.

HORIZONTAL WELDING (2G/2F): CONTROLLING LATERAL SPATTER

Horizontal welding requires welding on a vertical or inclined joint, where gravity tries to pull the molten metal downward (called "sagging"). It's common in pipe fabrication, structural steel, and machinery frames.

Key Techniques

• Electrode Angle: Tilt the electrode 20–30° upward from the horizontal, pointing toward the top of the joint. This counteracts gravity and prevents the weld pool from dripping.
• Weaving Motion: Use a tight,half-moon weave to deposit metal evenly. Pause briefly at the top of each weave to ensure fusion—this avoids undercut on the upper piece.
• Current Adjustment: Reduce current by 10–15% compared to flat welding. Lower heat keeps the weld pool smaller and easier to control.

Pro Tip

For fillet welds (2F), focus on balancing heat between the two pieces—aim 60% of the electrode's heat at the thicker piece to avoid incomplete fusion.

Common Mistake

Using too high a current—this causes the weld pool to sag, resulting in a uneven bead with "underfill" on the lower side.

VERTICAL WELDING (3G/3F): FIGHTING GRAVITY HEAD-ON

Vertical welding involves welding along a vertical joint, with the weld pool hanging downward (vertical down) or climbing upward (vertical up). Vertical up is preferred for thicker materials (≥3/8") as it provides deeper penetration, while vertical down works for thin sheets (≤1/4") to avoid burn-through.

Key Techniques (Vertical Up)

• Electrode Angle: Hold the electrode at a 30–45° angle from the vertical, tilted upward in the direction of travel.
• Weaving Motion: Use a "Z" or "C" weave to control the weld pool. Pause at the edges of the joint to prevent undercut and ensure full fusion.
• Current Setting: Use a lower current (5–10% less than horizontal) to keep the weld pool from running.

Key Techniques (Vertical Down)

• Electrode Angle: Tilt the electrode 15–20° downward, moving quickly along the joint.
• Short Arc Length: Keep the arc tight to minimize heat—this prevents burn-through on thin materials.


Pro Tip

For vertical up welding on thick steel, use multiple passes (root pass, fill pass, cap pass) to build up the weld gradually. Each pass should overlap the previous one by 50% for uniform strength.

Common Mistake

Rushing the vertical up pass—this leads to a narrow, weak weld with poor fusion. Take your time with the weave motion to distribute heat evenly.

OVERHEAD WELDING (4G/4F): THE ULTIMATE TEST OF SKILL

Overhead welding is the most challenging position, where the weld joint is above your head, and gravity pulls the molten metal straight down. It's used in structural steel erection, pipe welding, and shipbuilding—requiring precise control to avoid drips and splatter.

Key Techniques

• Electrode Angle: Hold the electrode at a 45° angle from the joint, tilted slightly toward you (drag angle). This keeps the weld pool focused on the joint instead of dripping onto your workspace.
• Short Arc Length & Low Current: Use the lowest current possible (5–10% less than vertical) and a tight arc (1/8") to minimize the weld pool size. Smaller pools are easier to control against gravity.
• Slow, Steady Travel: Move the electrode slowly to ensure penetration, but avoid pausing—this causes the pool to grow and drip.


Pro Tip

Wear a welding hood with a flip lens and protective clothing (leather sleeves, gloves) to shield against falling molten metal. For fillet welds, aim the electrode at the center of the joint to ensure fusion on both pieces.

Common Mistake

Using a long arc—this increases splatter and makes the weld pool unstable. Keep the electrode close to the joint to maintain control.

FINAL TIPS FOR MASTERING SMAW POSITIONS

1. Practice on Scrap Metal: Before tackling a project, practice each position on scrap steel to get a feel for the weld pool and electrode angle.

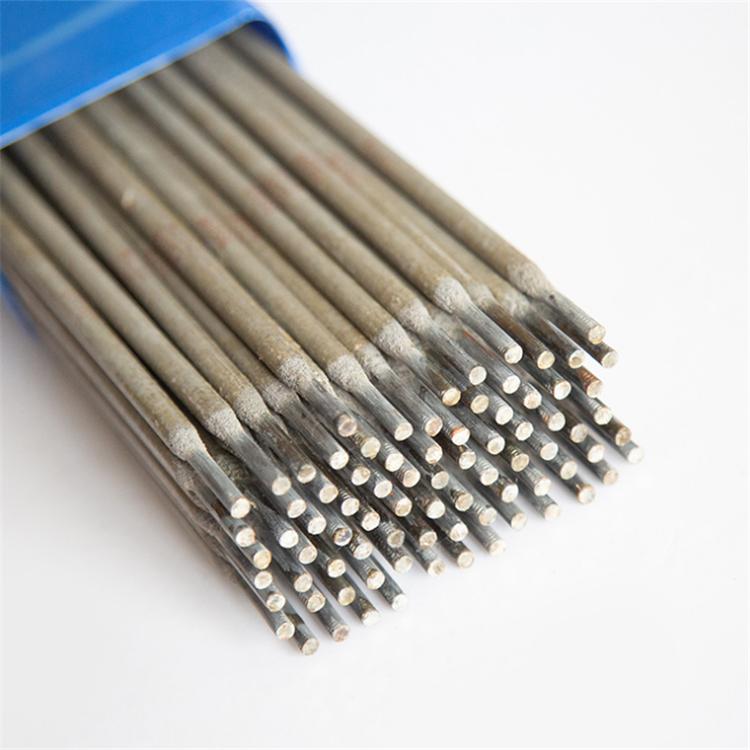

2. Choose the Right Electrode: Use E6013 for thin materials (flat/vertical down) and E7018 for thick materials (horizontal/overhead)—E7018's low-hydrogen formula reduces porosity in critical welds.
3. Inspect Your Welds: After welding, check for defects like undercut, porosity, or incomplete fusion. Use a wire brush to clean the bead and verify uniform width and penetration.

SMAW's strength lies in its adaptability—by mastering these position-specific techniques, you'll be able to tackle any project with confidence, whether you're working in a shop or on a job site. Remember: consistency is key. The more you practice, the more intuitive adjusting to each position becomes.

Have a specific SMAW project or position you're struggling with?Drop a comment below!
